Overview

Overall, core/flow provides the infrastructure for defining the "flow" of a client-side retail application. It understands the steps and transitions though an application, as well as what screens to display in an abstract level. It is not aware of a particular UI technology. It says "display the sales screen with the following items" and allows the client to decide how to render that information as a screen on the UI.

The core/flow project contains much of what is considered the "controller" logic that resides in between the web front end client (the "view") and the business logic service code (the "model"). The core project provides Specifically, core contains:

• The state machine. (The org.jumpmind.pos.core.flow package.)
• UIMessages such as HomeUIMessage, DialogUIMessage are abstracted screen types.
• Abstracted UI component models which make up the form screens (e.g. FormField, DateField, RadioField, etc., in the org.jumpmind.pos.core.model package)
• ScreenInterceptors are like filters which get run on each screen model before it is passed to the client.
• Screen templates (e.g. SellTemplate) are higher level templates for commonly used screen layouts.

Key Classes

• SessionSubscribedListener - invoked by Spring when a new client connects over stomp.
• StateManager - dictates what the current screen of the application should be and handles actions as they come in.
• ScreenService - the screen service works with the MessageService to a) send screens to the client as JSON stompe messages and b) receive Actions from the client in the form of Json messages.
• UIMessage - represents a message (usually a screen) that is sent to the client.
• StateComponentReslver - the component that finds a matching State Bean for the current StateContext
• StateBeanComparator - sorts the state beans by the order of precedence.
• ShowScreenAfterActionLoop - executes after the action loop for a specific device completes and picks an IBuildScreen implementation that matches the StateContext.

State Machine

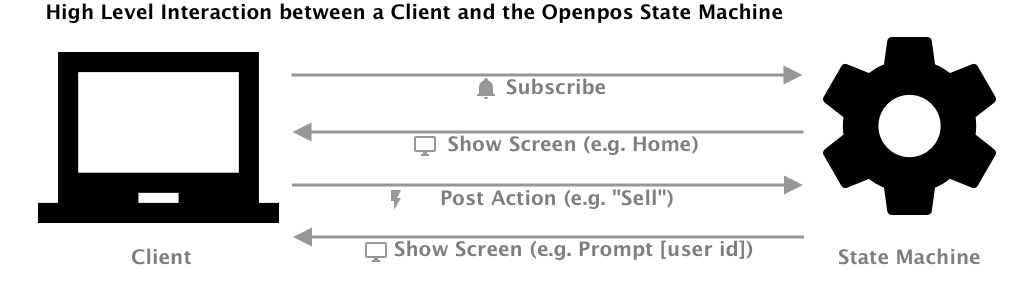

The state machine is responsible for the "state" of a client application.

State machine concepts

State

What state the application is in. (E.g. HomeScreenState) The state machine transitions from state to state.

A state can be represented by any java class and includes at least one method annotated with @OnArrive.

public class HomeState {
    @OnArrive
    public void arrive(Action action) {
        ...
    }
}

States can also inject services, Spring beans or scoped context values.

Services and Spring beans are typically injected using the @RequiredArgsConstructor annotation with private final class members.

@RequiredArgsConstructor
public class HomeState {
    private final IUserService userService;

    @OnArrive
    public void arrive(Action action) {
        ...
    }
}

Responding to Actions

Except for global actions (below) states have first dibs on handling actions.

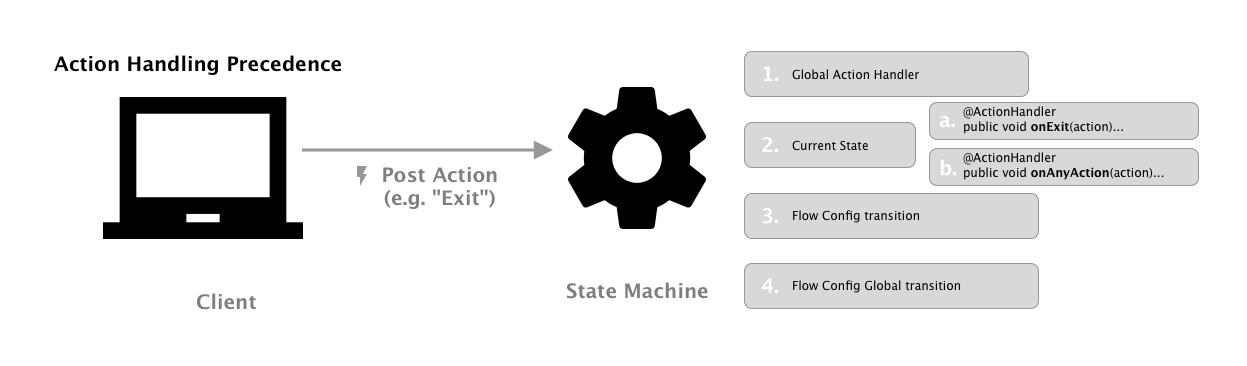

1. Check if a Global Action Handler is configured for the action handler. The state manager will look at the current flow and any parent flows (if the current flow is a subflow).
2. The current state is evaluated for matching action handlers in the following order
3. Specific Action Handler
   1. State Bean
   2. Current State Class
4. Any Action Handler
   1. State Bean
   2. Current State Class

Specific Action Handler

Specific action handler is a method annotated with @ActionHandler where the function name follows the pattern on + NameOfAction so that when NameOfAction is fired the method onNameOfAction will be invoked.

@ActionHandler
public void onNameOfAction(Action action) {
    ...
}

Any Action Handler

Any Action Handlers are a special action handler that when the method onAnyAction is annotated with @ActionHandler it will act as a catch-all to any action without an explicitly defined action handler function. An action can be forwarded back to the StateManager from an action handler method.

@ActionHandler
public void onAnyAction(Action action) {
    ...
}

Scoped Context Values (@In, @InOut, and @Out)

Scoped context values represent values which need to be **shared between states, transition steps, and action handlers. ** The currently logged in user or current transaction are common examples of scoped context values.

Scoped values are injected into States using the @In annotation. You can also set scoped context values using the @Out annotation. The @InOut annotation combines the 2 concepts and will both attempt to inject an existing value and also " outject" the value back into the context after the state runs.

public class SaleState {
    @In(scope = ScopeType.Session, required=false)
    private BusinessDate businessDate;

    @InOut(scope = ScopeType.Conversation, required=false)
    private RetailTransModel currentTransaction;

    @OnArrive
    public void arrive(Action action) {
        ...
    }
}

@In annotation options:

• name - defaults to the name of the field. In the example above, the system will look for a value named businessDate and a value named currentTransaction.
• autoCreate - defaults to false. If it's true and no context value is found for the given name, then try to create and supply a new object that matches the target type. The newly created object will then be in the context and available for injection into other states per the scope rules.
• required - defaults to true, it is a pre-condition of the state the named value must exist in the context prior to arriving at this state. For example all states that assume a transaction and operate on the currentTransaction can leave this as the default of true and assume that there will be a non-null currentTransaction when the state runs.
• scope - scope defines how long a particular value will live and is useful for making sure that stale values don't bleed between flows, transactions, etc. Each context value must be assigned to a specific scope.

Flow Yaml Config Files

States and their transitions are represented in "flow" yaml config files. Consider this example"

---
DefaultFlow:
  - HomeState:
      Sell: SaleState
      Returns: ReturnState
  - SaleState:
      Back: HomeState
  - ReturnState:
      Back: HomeState

This flow config has the following semantics:

• The DefaultFlow will start on the HomeState because it's the first state list.
• On the HomeState, when the "Sell" action is encountered, transtion to the SaleState. If the "Returns" action is encountered, transition to the "ReturnState".
• When on the SaleState, if the "Back" action is encountered, transition to the HomeState.
• When on the SalReturnStateState, if the "Back" action is encountered, transition to the HomeState.

Action

Actions: these are events generated either by the client or by server side state logic. (e.g. UsernameEntered). Actions always have a name and can have an optional payload (data) which is usually a string or a Map structure.

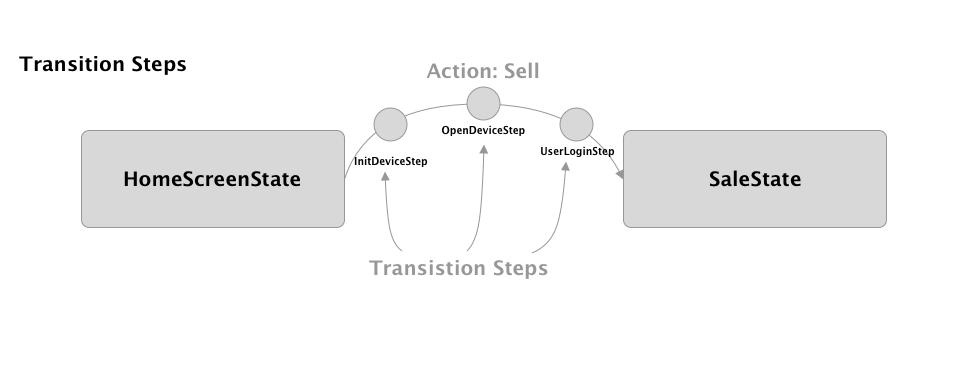

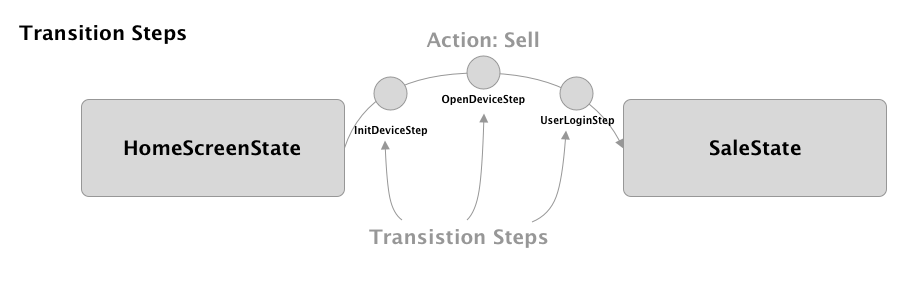

TransitionStep

Steps which execute during the transition from one state to another and can show screens and cancel the transition if necessary. Transition steps are good for cross-cutting needs such as ensuring a user is logged in or the device is open, for example.

Transition steps are Spring beans which implement the ITransitionStep interface. Each TransitionStep has an * isApplication method and arrive* method which both receive a Transition object. Transition steps can also use spring context injection through @Autowired or constructor injection and @In fields just like any state.

When a transition step is complete, it should call transition.proceed(). If the transition needs to be canceled, then call stransition.cancel().

@Component
@Order(150)
public class UserLoginStep implements ITransitionStep {

    @InOut(scope = ScopeType.Session, required = false)
    private UserModel currentUser;

    @Override
    public boolean isApplicable(Transition transition) {
        return true;
    }

    @Override
    public void arrive(Transition transition) {
        promptForLogin();
    }
}

Substate / Subflows

Normally, the state machine goes from state to state, with no concept of going "back" to a previous state. All that is known (by default) is the current state and where that current state can transition to next.

But sometimes you want to run a shared state or flow, such as customer lookup, and then return to the current state. That is what a subflow does: it allows for transition to a new state (or a series of states, as defined by a subflow yaml, for example) without exiting the current state. When the subflow completes, control is returned to the state where the subflow was launched from (using a ReturnAction)

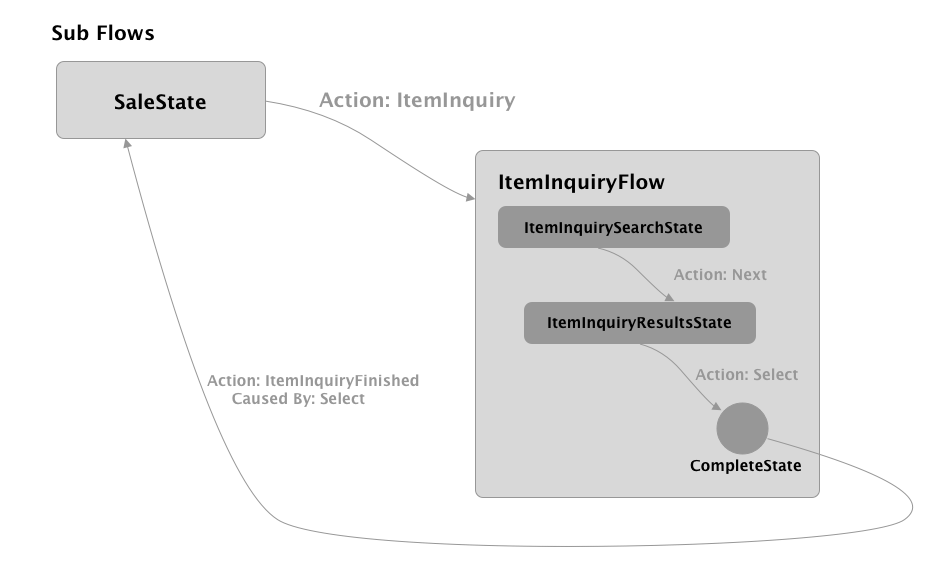

Here is an example which depicts a good use case for a subflow. You are in a sale, and which to offer an item inquiry function (ie, item search, item lookup). You want the item inquriry flow to run, and then when it completes, you want the system to come back to your sale.

Details about the subflow example:

1. The user starts in the SaleState (i.e., a tthe selling screen of a POS.)
2. The user taps the "Item Inquiry" button which in turn fires the ItemInquiry action.
3. In the flow config for sale, the ItemInquiry is mapped to a subflow of ItemInquiry subflow.

SaleFlow:
  - SaleState:
      Back: CompleteState
      ItemInquiry: {subflow: ItemInquiryFlow, ReturnAction: ItemInquiryFinished}
      ...

A subflow does not require a separate flow config. You can configure a subflow to transition to single state. For example:

SaleFlow:
  - SaleState:
      Back: CompleteState
      CustomerLookup: {subflow: CustomerLookupState, ReturnActions: CustomerSelected; CustomerLookupCancelled}
      ...

In this case, the CustomerLookup action causes the StateManager to proceed to a subflow with state CustomerLookupState. When any of the ReturnActions are fired (CustomerSelected or CustomerLookupCancelled), then the state machine logically treats that as a transition to the CompleteState, and will return control to the SaleState.

1. The ItemInquiry subflow has the ItemInquirySearchState as it's initial state, so the ItemInquirySearchState becomes the current state.

---
ItemInquiryFlow:
  - ItemInquirySearchState:
      Next:
        ItemInquiryResultsState:
          Select: CompleteState

1. The user moves through the item inquiry process by tapping Search (issuing the Next action) and selected an item search results (issuing the Select action.)
2. A subflow should always be designed to terminate by going to a special state call CompleteState. Once the CompleteState is reached, control will return to the calling state. The ReturnAction specified in the subflow invocation (in this case ItemInquiryFinished) will be fired at the calling state. If not ReturnAction is depicted, then the @OnArrive method will be called when returning to the calling state. An alternative to using * ReturnAction would be to use ReturnActionMapping*. This allows different return actions to be mapped to the appropriate action that can be mapped in the calling flow.

You can call Action.getCausedBy() on an return action to get the actual action that lead to the transition to the CompleteState in the subflow. It a context value need to get propagated up to the calling state (in this case, the selected item, for example) then it is recommended to set and retrieve that data on the action itself. (See Action.getData(). The data could be set to a Map to contain multiple values.)

Globals Transitions

It is possible per flow to configure global transitions. What this means is that regardless of the current state that is active, the StateManager can handle a certain Action. For example, mpte the "Global" secion in the following DefaultFlow config. What that means is that if the BackToMain action is fired anytime during the default flow, the framework will automatically transition to the HomeScreenState.

DefaultFlow:
  - HomeScreenState:
      Sell: {subflow: SaleFlow, ReturnAction: SaleFinished}
      Returns: {subflow: ReturnFlow, ReturnAction: BlindReturnFinished}

  - Global:
      BackToMain: HomeScreenState

It is also possible to configure global subflows in a very similiar fashion using the Global identifier.

Global Action Handlers

Similar to a global transition, it is possible to configure a global action handler. A global action handler works exactly like a global transition, except that it does not transition anywhere and control remains with the current state. But this allows for the client to fire an action, and have a bit of logic respond to that action without transitioning to a different state.

Say the application has a language dropdown on every screen. An example of a global action handler would be a piece of logic that responds to a change in the users' language. The action handler would receive the action and the new language, change it accordingly and refresh the screen, and be done.

Global action handlers can be configured through the application properties similar to global transitions. For example, the configuration below would map the action LanguageChanged to the LanguageChangedActionHandler class:

DefaultFlow:
  ...
  - Global:
      LanguageChanged: LanguageChangedActionHandler

A global action handler has the same behaviour as a state (including full access to Injections through @In) except that is has a method called @OnGlobalAction instead of @OnArrive like a state.

public class LanguageChangedActionHandler  {

    @In(scope = ScopeType.Device)
    private IStateManager stateManager;

    @OnGlobalAction
    public void handleGlobalAction(Action action) {
        // change the language here.
    }
