User Management¶

The User Management module is responsible for providing authentication and authorization to the commerce applications as well as verification that individuals belong to the organization. Through User Management, a set of user workgroups can be created and maintained that control permissions for a set of users in a common business role (i.e. cashier, store manager, etc.)

In addition to internal, commerce managed users and user workgroups, out of the box integrations can be used to validate users and roles from third party systems such as Single Sign On and other Lighteweight Directory Access Protocol (LDAP) based systems.

Concepts¶

User management provides capabilities for four major concepts:

Authentication is the process of verifying who a user is. This is usually accomplished by providing a username and a password, but can be accomplished in other ways including biometrics, tokens (key fob or software token), etc. or can be used in combination to provide two factor authentication.
Authorization is the process of verifying what a user has access to within an application. Permissions are assigned to workgroups and users are added to their job specific workgroup resulting in different functional access to the appliation by user and user workgroup.
Verification is used by commerce application to validate that an individual is active and belongs to the organization. An example of verification is the employee discount functionality.
Administration is the act of adding and managing users and user workgroups. Most enterprise implementations have this feature disabled because users are sourced from other systems.

Terminology¶

Term	Definition
User	An individual with his/her own username and password that can log into commerce.
User Workgroup	A grouping of users with the same access. ie. Management, Retail. Each individual User is assigned to one User Workgroup.
Permission	Permissions define functionality in the point of sale that determine if a user can access a said function. Permissions are assigned to user workgroups and if the user is part of a workgroup with that permission, then the user has access.
Authentication	The process of confirming that the user is who the user says they are.
Authorization	The permission given to a specific user wokrgroup.
SSO	SSO, or single-sign-on, is an authentication strategy that allows for the use of a single username and password for authentication.
LDAP	LDAP (Lightweight Directory Access Protocol) is an open and cross platform protocol used for directory services authentication. LDAP provides the communication language that applications use to communicate with other directory services servers.
Manager override	The manager has the ability to permit an action that another user does not have the permission id for.

Authentication¶

Authentication is the confirmation that the user is who the user says they are. There are several ways to achieve this.

Types of Authentication¶

The commerce solution provides authentication through internal security measures or through integration to third party systems. For internal security, the commerce application can provide authentication through: - Password - Biometric (fingerprint)

For security through integration to a third party system, the commerce application has out of the box integration for: - LDAP

Other custom integration for authentication can also be easily completed for various single sign on (SSO) systems.

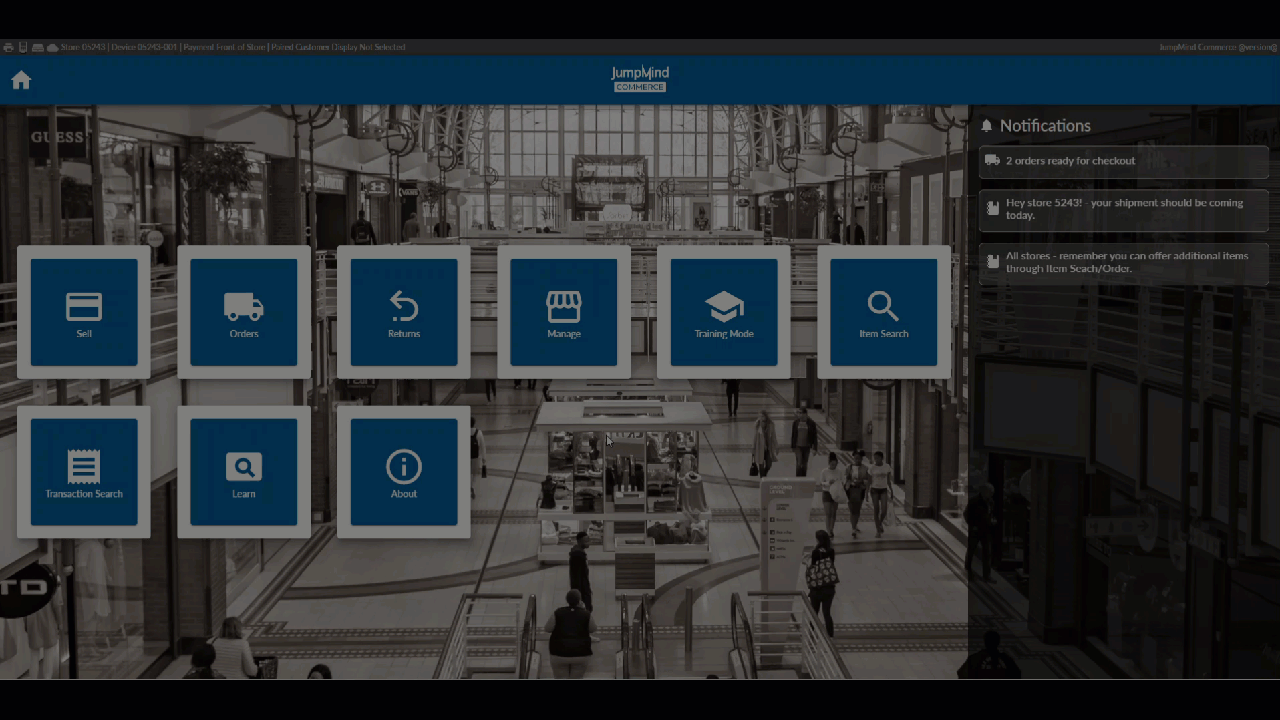

The Authentication Process¶

When attempting to use the system, a user is prompted to login

The Logout Process¶

The logout process allows for a signed in user to exit the commerce system.

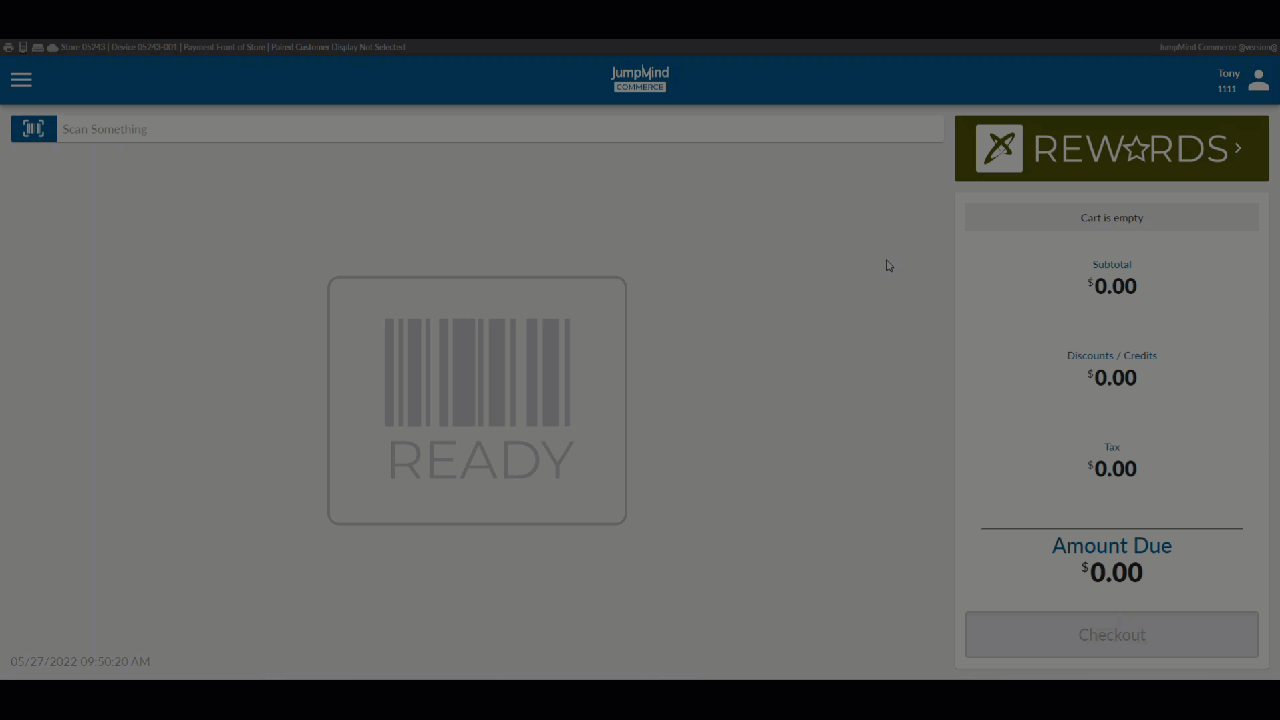

The Lock Screen¶

When a user has been logged into the system for a configurable time period without activity, the screen is locked, and that same user must re-login to continue work.

The screen can also be locked at any time from the user menu.

If the system is locked by a user who is no longer available, another user may "break" the lock if that user has appropriate permissions to do so. If a user lock is broken, and the previous user was in the middle of ringing a transaction, the existing transaction is abandoned and marked as ORPHANED.

Authorization¶

Each user is associated with one or more user workgroups (i.e. "Cashier" and "Management" are two logical workgroups that can be created to differentiate a sales associate's access versus a manager's access.

Permissions¶

Each workgroup is assigned permissions which determine the access that the users in that workgroup have to different functionalities in Commerce.

By default, a permission linked to a workgroup using the workgroup link table is inclusive, meaning it grants a user in that workgroup access. However, there is an excluded flag on this workgroup/permission link that signifies the user is to be denied access to that permission. This exclusionary rule is run after the inclusive permissions making these permissions overriding.

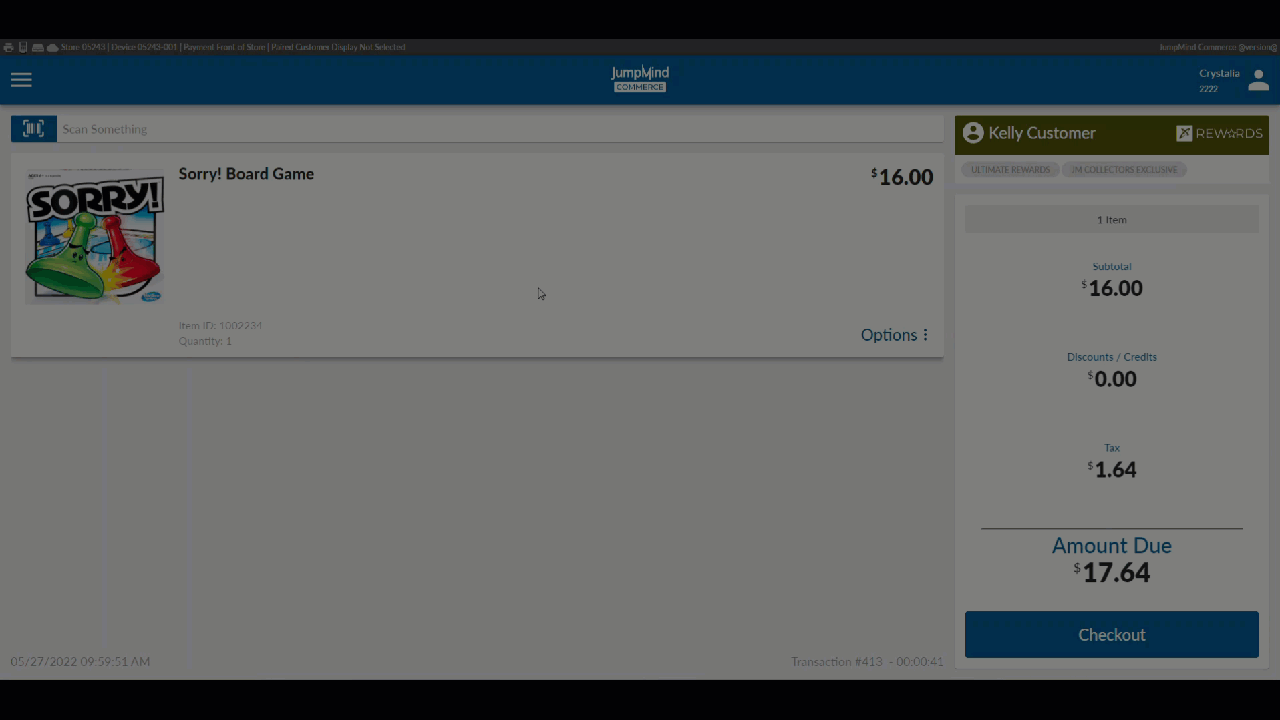

Manager Override¶

When a user is already logged into the system and they attempt access to a functional subsystem that requires a specific authorization that the logged in user does not already have they are prompted for a manager override if the function is overrideable.

Verification¶

Identifying a user can be useful in other scenarios in the commerce engine other than authentication.
Users can be verified for things such as providing employee discounts, etc. When an employee discount is provided the requested user can verified against the user store.

Administration¶

Managing Users¶

Commerce users with manager access have the ability to manage users in their database.

The highlighted functions involved in managing users are:

Add User
Display / Edit User Information
Search for User / List Users
Remove user
Reset User Password
Lock / Disable User Account
Unlock User Account

Add User¶

Create new Jumpmind Commerce user accounts to assign a new user to a workgroup.

After a User has been added, this user can be subject to the following functionalities.

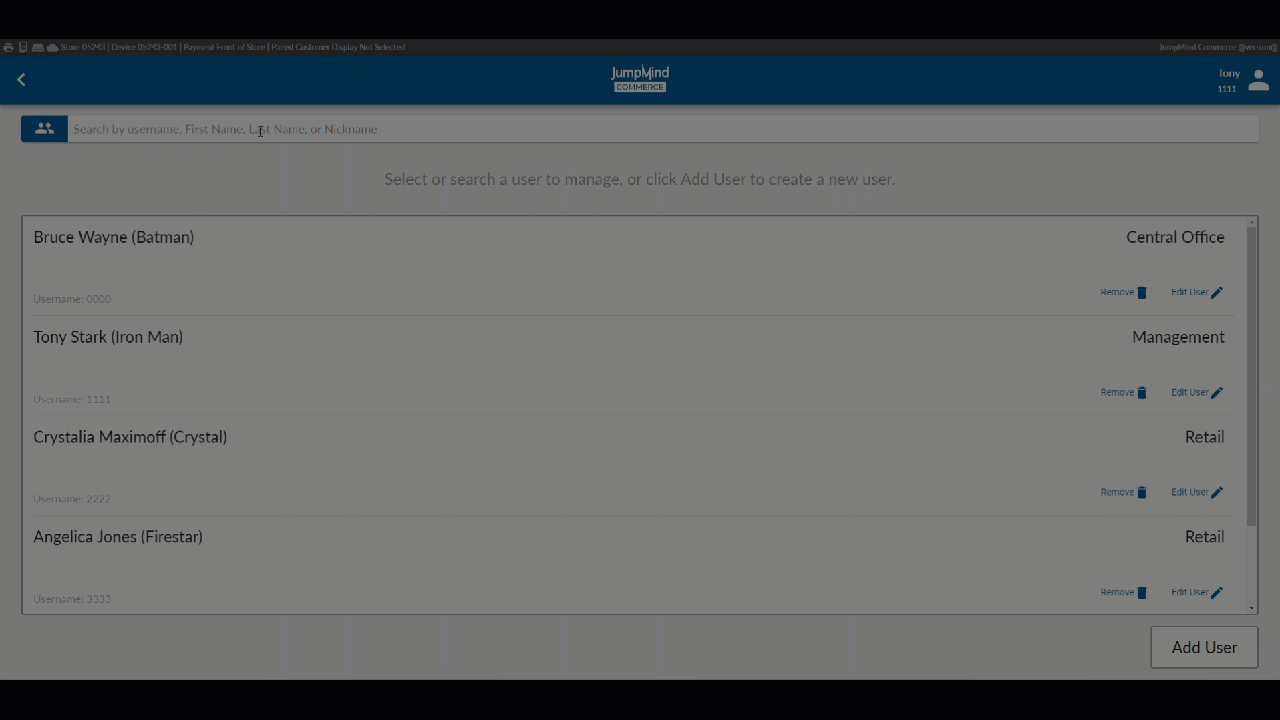

Search for User / List Users¶

A list of all pre-existing users, along with their respective workgroups gives access, allowing for account removal or for the user information to be disaplyed and edited.

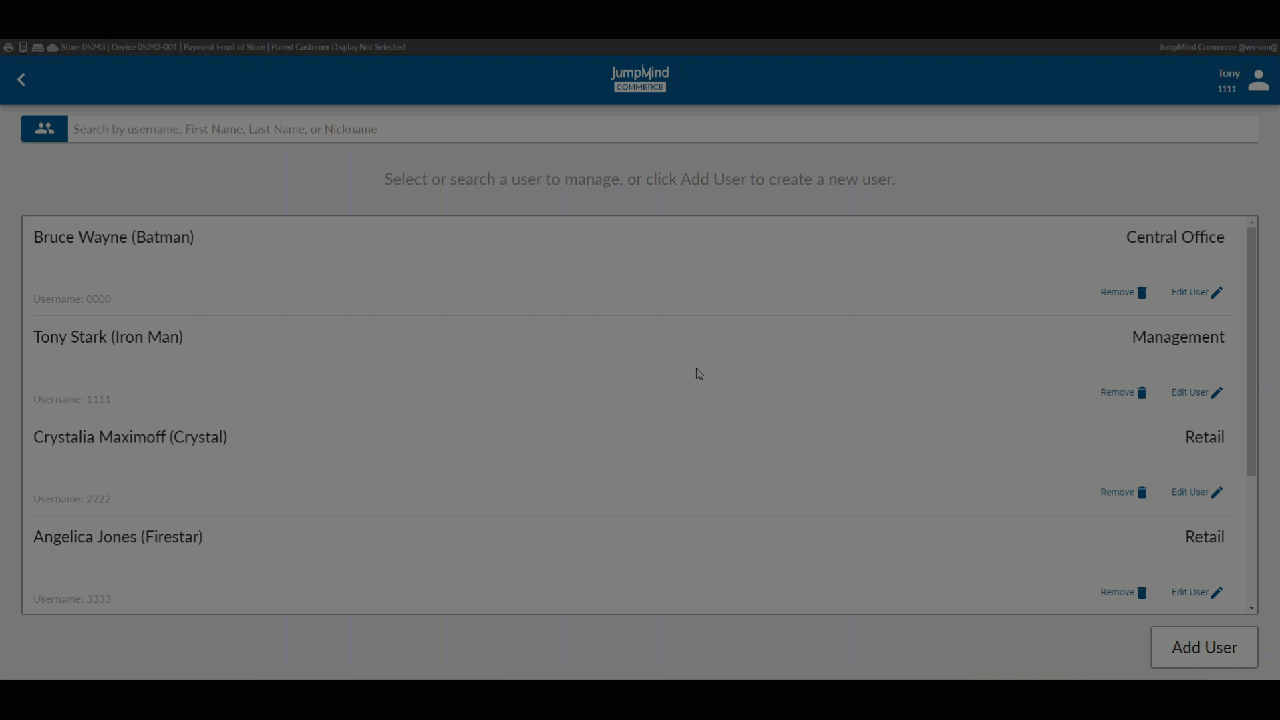

Display / Edit User Information¶

Once the user has been selected their information can be viewed and edited. specifically, name, username, and password.

The following functionalities can be accessed within the user menu

User Menu

Lock / Disable User Account¶

Jumpmind Commerce user accounts can be revoked access through locking a user account.

Unlock User Account¶

Locked/Disabled user accounts can be unlocked which re-grants the user their respective workgroup permission id's.

Reset User Password¶

User passwords can be changed

Auto log off after Sale¶

Following each sale, the auto logout feature will log the user out of their account.

Configuration Options¶

Action	Field	Option
Users have corresponding location configuration	byLocationEnabled	True/False
Default number of days for a user creaed for a temporary location	temporaryUserDefaultActiveDays	Ex. 30
User max number of login attempt before an account is locked	userMaxLoginAttempts	ex. 10
HashValueEndpoint will attempt to use the PDKDF2 hashing algorithm	pbkd2HashingAlgorithmEnabled	True/False
The specific PBKDF2 algorithm to use with the SecretKeyFactor	pbkdf2HashingAlgorithm	PBKDF2WithHmacSHA256
The resulting key length from the PBKDF2 hashing algorithm	pbkdf2KeyLength	ex. 256
number of times the HashValueEndpoint attempts to hash a request value if it has a valid pbkdf2HashingAlgorithm value	pbkdf2HashIterations	ex. 512
LocalUserStrategy or LdapUserStrategy	userStrategy	LocalUserStrategy
LDAP cache local user	ldapCacheLocalUser	True/False
Set LDAP cache refresh interval in minutes	ldapCacheRefreshIntervalMinutes	ex. 1440
Set default LDAP mapper	ldapMapper	DefaultLdapUserMapper
LDAP mapper - save the user password	savePassword	True/False
LDAP mapper - to use the mapping table	useMappingTable	True/False
LDAP mapper - which job code attribute should be used	jobCodeAttribute	ex. aeJobCode
LDAP mapper - set the defaultWorkGroupID for default auth option	defaultWorkGroupID	ex. 3
LDAP mapper - first name	firstName	givenName
LDAP mapper - last name	lastName	sn
LDAP mapper - user name	username	sAMAccountName
LDAP mapper - Enter userActiveFlag field	userActiveFlag	useraccountcontrol == 512
Password Strategy	passwordStrategy	LocalPasswordStrategy
Number of days password is valid	passwordDaysValid	ex. 42
Password Validation - require a symbol	validationType/validation	RequireSymbol/.[~!@#\$%\^&*].
Password Validation - require alpha numeric	validationType/validation	RequireAlphaNum/(.[0-9].[a-zA-Z].*)
Password Validation - requires a mixed case	validationType/validation	RequireMixedCase/(.[a-z].[A-Z].*)
Password Validation - require min password length	validationType/validation	RequireMinLength/4
Password Validation - prohibit previous passwords	validationType/validation	ProhibitPrevious
LDAP provider URL & Port	ldapProviderUrl	ldap://ldap.forumsys.com:389
Base DNs	baseDNs	cn=read-only-admin,dc=example,dc=com
Set LDAP provider context referral	contextReferral	ignore
Set LDAP provider security principal	securityPrincipal	${baseDN}
Set LDAP provider search filter	searchFilter	cn=${username}
Set LDAP provider search attributes	searchAttribs	name; givenName; sn; extentsionAttribute5; extensionAttribute8
The user who is allowed to search the base DN	bindDN	my_bind_dn_id
Enter the password for the bindDN	bindPassword	my_bind_dn_pwd
Enter the socket timeout (milliseconds)	socketTimeout	ex. 2000
Indicates if user should be authenticated using an external SSO provider	singleSignOnEnabled	True/False
Indicates if the user should be validated when a client device is connected	ssoValidationOnConnect	True/False
Action to execute when SSO user is invalid	ssoInvalidAction	Logout
